Override Indicators

Override indicators are visual markers displayed in the gutter (left margin of the editor) that show when a job property overrides a parent job property through the extends inheritance chain.

When a job extends another job and overrides one of its properties (such as after_script, before_script, script, image, etc.), an override icon appears in the gutter next to the property. Clicking on this icon navigates directly to the parent job's property that is being overridden.

How it works​

The plugin tracks the inheritance chain through the extends keyword and identifies properties that are defined in both the child job and one or more parent jobs in the chain.

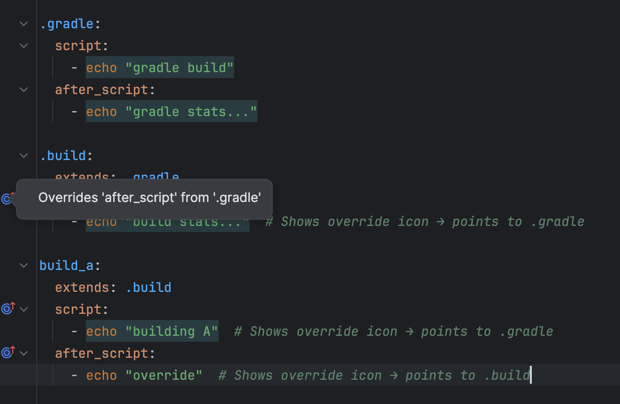

Example​

img/override-indicators.png

In this example:

  • The after_script in .build shows an override indicator that navigates to the after_script in .gradle
  • The script in build_a shows an override indicator that navigates to the script in .gradle (skipping .build which doesn't have it)
  • The after_script in build_a shows an override indicator that navigates to the after_script in .build (the nearest parent with this property)

Supported properties​

Override indicators work for the following job properties:

  • after_script
  • before_script
  • script
  • cache
  • image
  • services
  • variables
  • artifacts
  • stage
  • needs
  • dependencies
  • rules
  • interruptible
  • tags

Click on the override icon in the gutter to navigate to the parent job's property that is being overridden. This helps you quickly understand what is being changed and trace the inheritance hierarchy.
